Technical Parameters

Model	Platform size (m)	Max weighing capacity (t)	Division value (kg)	Installation height (mm)
ETS-15	6×2.8	15	5	420
ETS-20	7×3	20	10	420
ETS-30	12×3	30	10	420
ETS-50	12×3	40	10	420
ETS-50	12×3	50	10	420
ETS-60	14×3(3.4)	60	20	420
ETS-80	16×3(3.4)	80	20	420
ETS-100	16×3(3.4)	100	50	420
ETS-120	16×3(3.4)	120	50	420
ETS-150	16×3(3.4)	150	50	420

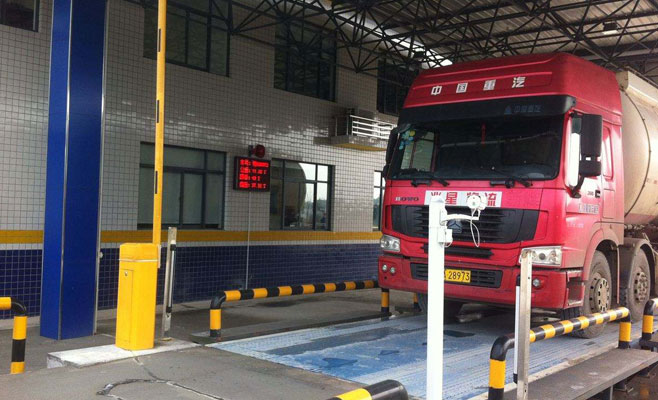

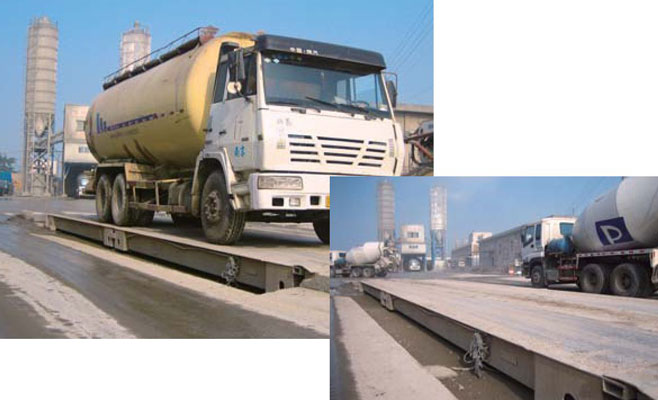

Explosion-proof truck scale

1. Brief description:

SCS-G series of explosion-proof electronic truck scale using utility model patented technology, through the relevant explosion-proof weighing appliances and

Explosion-proof weighing module installed in the weighing platform to form an explosion-proof system, the system may produce explosive sources (electrical short-circuit sparks, static friction sparks, high-temperature energy concentration, etc.) to eliminate or cut off, so as to achieve the scale of the explosion in the use of the environment the goal of. In addition to the explosion-proof devices are different, the relevant technical parameters and performance are the same with the SCS series of electronic truck scale.

BSCS series of explosion-proof electronic truck scale is based on GB3836.1-2000 "Explosive Gas Environment Electrical Equipment Division 1

Points: General requirements "and GB3836.2-2000" Explosive gas environment with electrical equipment Part 2: Flameproof "d" "and other related technical requirements to design and manufacture, and by the state designated explosion test unit After passing the test to obtain explosion-proof certificate, explosion-proof mark. This product is suitable for petrochemical, oil and other places in the temperature group T1-T5 and explosion-proof grade IIA, IIB flammable and explosive gas environment in Zone 1, 2 for the indoor and external car scale weighing and weighing signal Transmission and other purposes

Scale body with U-shaped section beam as the scale of the mechanical structure, reasonable structure, the use of materials, rigid and strong. Welding with carbon dioxide welding continuous welding, cavity sealed, corrosion-resistant. The construction process is simple and fast. Installation of the sensor parts and more than the scale body lap design reasonable and clever, installation and maintenance is extremely convenient.

The overall structure and reasonable structure to ensure the installation of the use of precision and accuracy of the long-term stability.

2. Components

2.1 explosion-proof truck scale

Standard configuration:

  1, high-strength whole scale platform (sub-type)

   2, high-precision bridge explosion-proof load cell

   3, XK3101 series of intelligent AC and DC, explosion-proof weighing display instrument

   4, all stainless steel explosion-proof junction box.

3.  Optional:

 1, printer (needle ticket printing)

 2, large screen display (3 inches, 5 inches, 8 inches)

3, weighing management software

4, anti-surge power protection, UPS uninterruptible power supply,

2.2 Brief description of product composition

Weighbridge truck scale crane scale weighing system electronic platform scales electronic scales

SCS-G series of analog explosion-proof electronic truck scale system, according to customer needs, there are two ways for customers to choose:

        1, flameproof configuration: the explosion-proof weighing instruments, explosion-proof sensors, explosion-proof junction box all put in dangerous areas.

        Features: Due to the explosion-proof weighing instrument placed in the danger zone, so the connection with the optional parts are required explosion-proof, is very

Multi-choice accessories without explosion-proof products, limiting the product in the functional aspects of the expansion. Eagle Teng self-produced products are explosion-proof large screen can be

To choose to meet the requirements of outdoor display weight. All of the above electrical components are analog.

        2, the complex configuration: the non-explosion-proof weighing instrument placed in a safe area, scale body and sensors, junction box placed in a dangerous area.

        Features: The instrument is placed in a safe area, so the optional parts can be connected, such as printers,

Weighing management software, computers and so can be matching, in the function of a strong expansion. The need for outdoor large screen display, you can

Connect the explosion-proof large screen. All electrical components are analog.
