Technic Parameter |

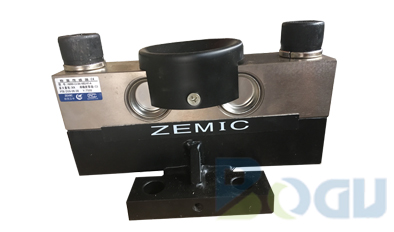

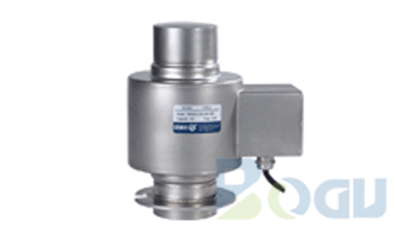

QSA | ZSF-A |
| Sensitivity | 5, 10, 15, 20, 25, 30, 40, 50t | 5, 10, 15, 20, 25, 30, 40, 50t |
| Total Error | 2.0±0.2%mV/V | 2.0±0.1%mV/V |
| Ceep (30min) | ±0.02%F.S | ±0.01%F.S |
| Zero Balance | ±1%F.S | ±1%F.S |
| TCO(Temperature Effect On Zero) | ±0.02%F.S | ±1%F.S |
| TC SPAN （Temperature Effect On Output） | ±0.02%F.S/10℃ | ±0.02%F.S |
| Input Resistance | 750±10Ω (ohms) | 400±10Ω (ohms) |
| Output Resistance | 703±10Ω (ohms) | 352±2Ω (ohms) |
| Insulation resistance | ≧5000MΩ | ≧5000MΩ |
| Operating Temp Range | -30~+70℃ | -30~+70℃ |
| Safe load limit | 150 / 120% F.S | 150% F.S |
| Lateral load limit | 300 20% F.S | 300 20% F.S |
| Recommend excitation | 10~12VDC | 10~12VDC |
| Maximum excitation | 15VDC | 15VDC |
| Protection class | IP68 | IP68 |
| Construction | Alloy steel | Alloy steel |
