Digital truck scale Get Inquiry
Send Email to:truckscale@bogushanghai.com

Technical Parameters

Model	Platform size (m)	Max weighing capacity (t)	Division value (kg)	Installation height (mm)
DTS-15	6×2.8	15	5	420
DTS-20	7×3	20	10	420
DTS-30	12×3	30	10	420
DTS-50	12×3	40	10	420
DTS-50	12×3	50	10	420
DTS-60	14×3(3.4)	60	20	420
DTS-80	16×3(3.4)	80	20	420
DTS-100	16×3(3.4)	100	50	420
DTS-120	16×3(3.4)	120	50	420
DTS-150	16×3(3.4)	150	50	420

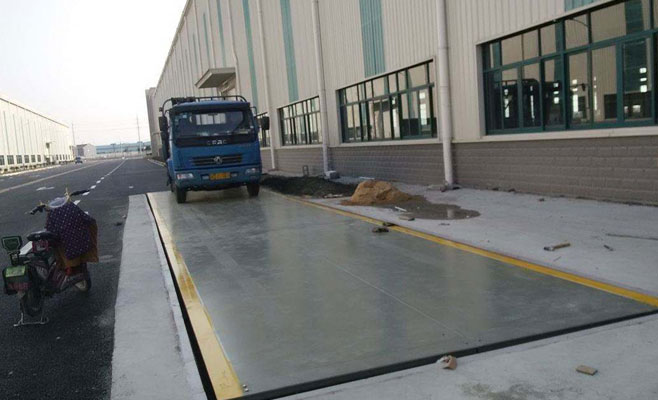

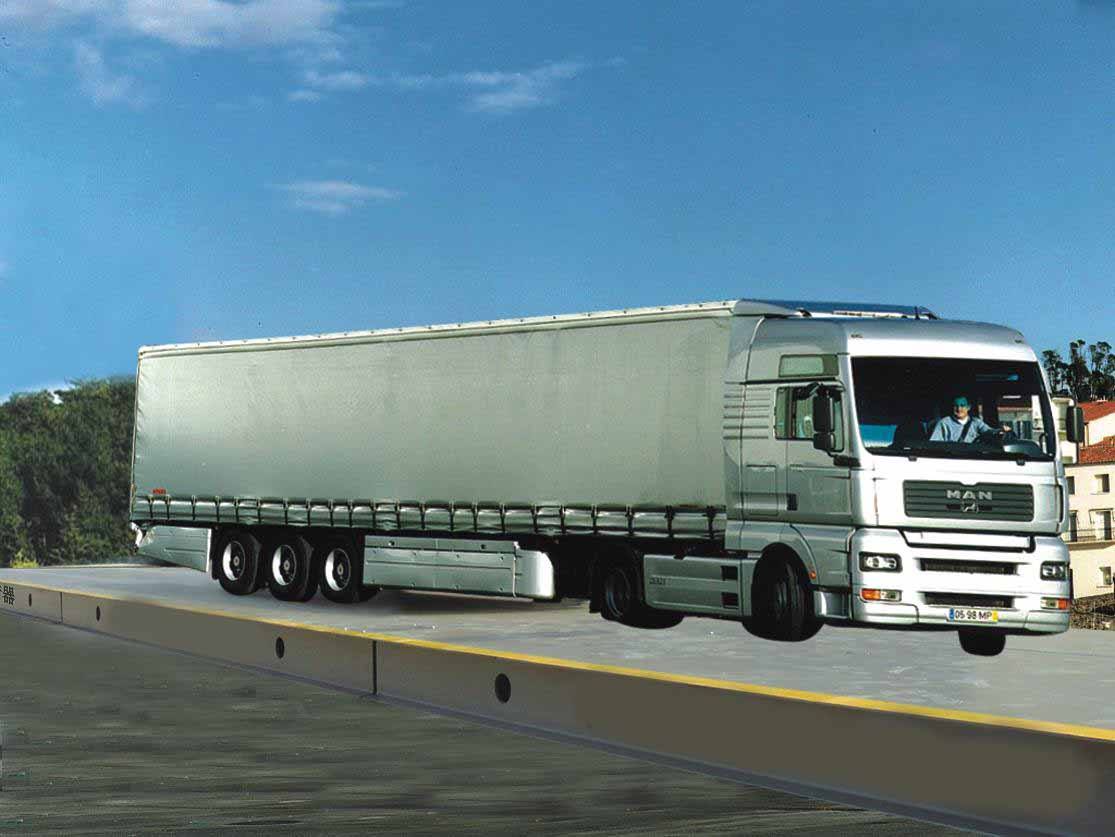

Digital Truck Scale-50t/60t/100t.120t truck weighbridge

1. the characteristics of digital truck scale（truck weighbridge）:

1), communication technology:

① using RS485 bus technology to achieve long-distance transmission of the signal, the transmission is not less than 1000 meters;

② output digital signal amplitude of 3 ~ 4V, so that anti-interference ability to strengthen, while improving the system anti-lightning ability;

③ bus structure to facilitate the application of multiple load cells, in the same system can be connected up to 32 weighing the sensor.

2), intelligent technology:

① to prevent the use of simple circuit to change the weighing signal and size;

② The sensor characteristic parameters can be changed according to the instruction.

③ memory ability to replace the sensor after the calibration problem.

3), digital calibration technology:

① to make the load side load (four corners) calibration automatically completed;

② to calibrate the weighing instrument once completed;

③ can be modified according to the scale of the scale and zero value, the value of each sensor and zero parameters.

4), fault diagnosis technology:

① has the ability to diagnose the zero value of the instrument;

② has the ability to diagnose the zero value of each sensor;

③ have the ability to diagnose the change of each sensor communication;

④ to determine the replacement of the sensor after the address and number does not match the prompting ability;

⑤ has a variety of operational error message prompting ability.

2. digital weighing sensor Features:

1), digital technology

① weighing sensor using highly integrated high intelligent processing unit all digital output;

② self-compensation of the non-linearity, lagging, changing and temperature performance of the weighing sensor;

③ It is possible to prevent the weighing circuit from changing the size of the weighing signal with a simple circuit.

④ memory ability to remove the replacement of the sensor after the calibration problem.

2), digital communication technology

① using RS485 bus technology to achieve the long-distance transmission of weighing signals, transmission distance of not less than 1000 meters;

② output signal up to 3 ~ 4V, so that anti-interference ability to strengthen, while improving the system's anti-lightning ability.

3), bridge technology

① using double shear beam structure, anti-lateral force and excellent impact resistance;

② the use of steel ball force, so that self-aligning and reset the ability to improve;

③ on-site installation convenient and quick.

4), protection technology

Protection level to GB4942.2 standard IP68 level.

3, the digital weighing display features:

1), man-machine dialogue function

Through the main menu and sub-menu can be the weight unit, tare, digital peel, cumulative, and time and date and other items to operate.

2), storage function

① You can use the eight digits to store 200 sets of car / tare value in the instrument, you can also enter the number / tare value via the numeric keypad.

② You can use the eight-digit number of 50 sets of code set value input instrument, each code includes: code number, tare value, lower limit value, overestimation value, excess value, cumulative and the number of times.

3), the cumulative function

There are four kinds of accumulation methods: manual accumulation, automatic accumulation, print accumulation and record accumulation, the maximum cumulative value and the cumulative number of times to eight digits, but also has a cumulative or cumulative correction function.

4), record function

Can record 1200 sets of weighing data, including: code, car number, gross weight, net weight, time and date.

5), query function

With the function of querying weighing data, code and calibration parameters

6), communication function

① has a standard parallel print interface, you can connect most of the nine-pin or twenty-four pin eight or more than the printer.

② with RS-232C and 20mA current loop each one

7), programming function

The user can select the appropriate parameters within the specified range of 32 items of programming, so that the instrument applies to a variety of situations.

8), calibration function

Automatic and manual calibration of the load (quadrangular) parameters, range parameters, and empty scale parameters for the weighbridge.

9), address allocation function

As the weighing system in the digital sensor all connected to the RS-485 bus. For digital communication, each digital sensor must be addressed. The weighing indicator addresses each sensor in the system according to the identification value of the digital load cell.

10), fault information prompt function

Weighing indicator with the installation of debugging, in use, calibration of 25 kinds of fault information prompt function.
