Technical Parameters

Model Number	Max weighing capacity (t)	Platform size (m)	Division value (kg)	Installation height (mm)
XTS-20	20	3x7	10	420
XTS-(30-60)	30-60	3x7 3x8	10	420
XTS-(60-80)	60-80	3x9 3x10 3x12 3x14	20	420
XTS-(80-100)	80-100	3x14 3x16	50	420
XTS-(100-120)	100-120	3x16 3x18 3.3x16 3.3x18	50	420
XTS-(120-150)	120-150	3x18 3x20 3.3x18 3.3x20	50	420
XTS-(150-200)	150-200	3.3x18 3.3x20 3.3x24	50	420

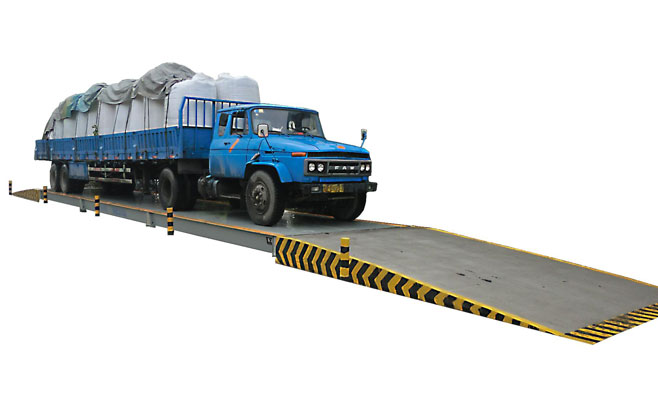

Axle load truck scale

1. Brief introduction

Maximum overload capacity: 125% F.S

Check the vehicle to allow dynamic cross-balancing speed: ≤ 5km / h (uniform)
Can detect the number of axles (number of axles) of a single counter vehicle: ≤12
Serial interface: RS232 / RS422 / 20mA current loop
Parallel printer interface

Optional variety of vehicles ending mode (automatic ending, automatic delay ending, manual ending)

2 serial ports: RS232 / RS422 / 20mA current loop
Parallel interface: then PQ30 + printer, three print formats.
Electronic shaft scale input / output point: 8 inputs, 8 outputs.
Interface protection circuit: protect the serial port, parallel port and input / output points.
Instrument self-diagnostic function: to help users quickly find fault.

2. Application

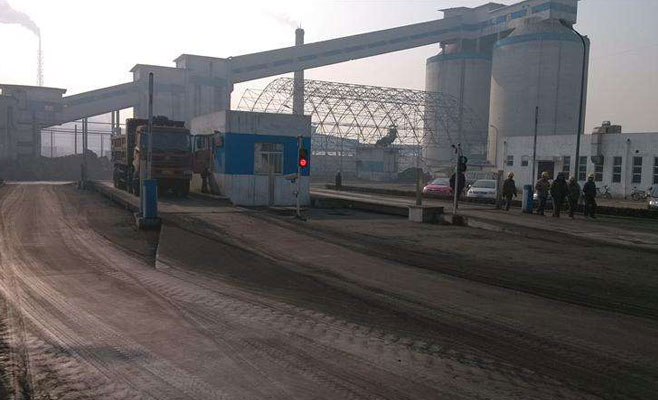

After the measurement of the uniaxial or axle group of the vehicle, the electronic weighing of the vehicle weight is obtained by accumulating the vehicle weight, especially for the measurement of the low load of the factory, the factory and the factory, and the load on the expressway.

Shanghai loadometer Features: easy installation, basic investment costs less, easy to move, using digital display, intuitive and easy to read, you can print the results of weighing.
