Technical Parameters
|
Model |
Platform size (m) |
Max weighing capacity (t) |
Division value (kg) |
Installation height (mm) |
|
ATS-15 |
6×2.8 |
15 |
5 |
420 |
|
ATS-20 |
7×3 |
20 |
10 |
420 |
|
ATS-30 |
12×3 |
30 |
10 |
420 |
|
ATS-50 |
12×3 |
40 |
10 |
420 |
|
ATS-50 |
12×3 |
50 |
10 |
420 |
|
ATS-60 |
14×3(3.4) |
60 |
20 |
420 |
|
ATS-80 |
16×3(3.4) |
80 |
20 |
420 |
|
ATS-100 |
16×3(3.4) |
100 |
50 |
420 |
|
ATS-120 |
16×3(3.4) |
120 |
50 |
420 |
|
ATS-150 |
16×3(3.4) |
150 |
50 |
420 |

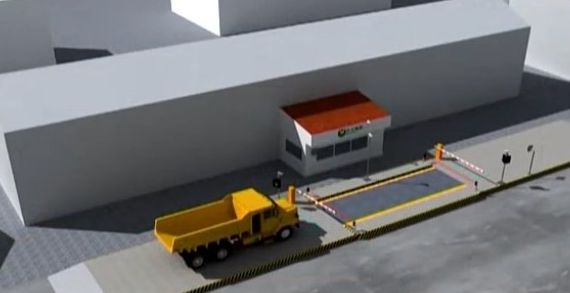

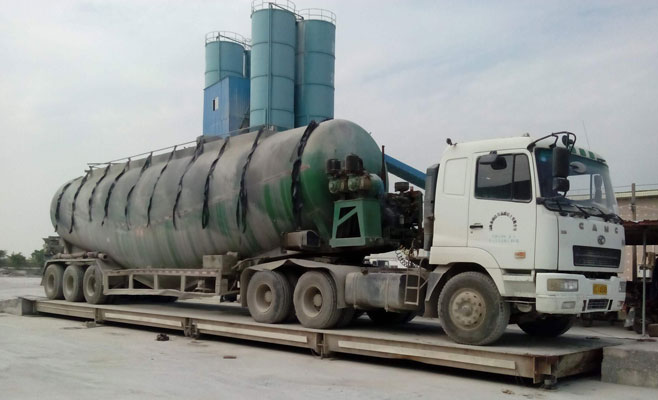

Analog truck scale
The analog truck scale platform adopts the frame structure of steel welded, the whole rigidity is high, the torsional resistance is strong, and the high-precision bridge weighing sensor and the performance is superior, the function is rich, the interface weighing the display instrument and so on together constitute the weighing system.
Its characteristics are high accuracy, good reliability, high degree of intelligence, adaptability, installation and maintenance easy. Can be widely used in various industries of national economic construction, the bulk of the goods weighing the vehicle weighing.
Technical Parameters:
Accuracy class: OIML R76 accuracy level
System operating voltage: AC 187 ~ 242V, 49 ~ 51Hz
Relative humidity: 20% to 90% RH
Operating temperature: weighing display controller -10 ~ 40 ℃, weighing part of -40 ~ 70 ℃
digital display gross weight, net weight, tare weight
Dynamic, underload and overweight status display
digital filtering, automatic zero tracking
Sensor protection class IP68
use 911221886.X "multiple weighing sensor electronic weighing" patent
