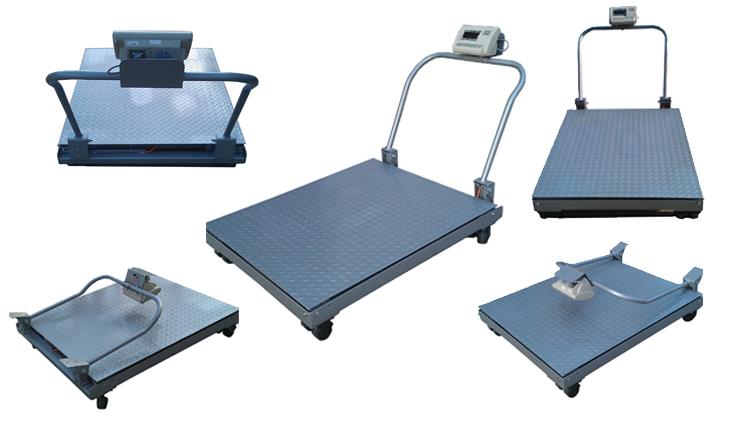

Mobile weighbridge


Mobile weighbridge

Brief introduction:

By the conventional electronic floor scale platform, wheel institutions equipped with high-precision shear beam weighing sensor and intelligent AC-DC dual-use weighing instrument composition. The weighing instrument is fixed on a specially designed stand bracket, compact and sturdy. Weighing by the platform after the four feet adjustable feet to support the ground to ensure accurate, stable and reliable. Need to move the wheel mechanism to make the polyurethane roller to the ground, the implementation of convenient and lightweight, suitable for applications often used to move the weighing position of the occasion. Can display gross weight, net weight, tare, automatic zero to maintain, print records and other functions. Equipped with different models of weighing indicator, to meet the needs of non-ventilated users.

Specifications:

Weighing accuracy: III (GB / T7723-2002)

Maximum weighing: 1 ton -5 tons

Scale value: 200 grams -1000 grams.

Display mode: 6-bit LED display.

Ambient temperature: Sensor: -20 - +40 degrees.

Weighing meters: - +40 degrees.

Ambient humidity: <90% RH, no condensation.

Power supply voltage: AC 220V + 10%, 50Hz. DC 6V4Ah.

Working time: charge once, can work continuously for 30h.

Rated power: <5W.

Protection measures: intelligent identification of battery power, automatic shutdown.

Communication interface: Rs 232c can be connected to a printer or computer.

Weighing platform material: pattern steel surface and stainless steel surface optional.

Weighing height: Weighing scales from the ground height of 180mm

Movement height: greater than 180mm, less than 280mm

Left and right track: 400 mm wide

The number of wheels: the front row 2 groups, each group of 2 ball bearings, polyurethane small wheel; rear 1 group, each group of 2 ball bearings, polyurethane large wheel.

Weighing range:

Weighing range: 0.5t 1t 2t 3t 5t 8t 10t

Scope: Widely used in warehouses, workshops, freight yard, bazaars, construction sites and other places for lifting materials weighing, forklift shovel cargo weighing, small car weighing and manual handling weighing
