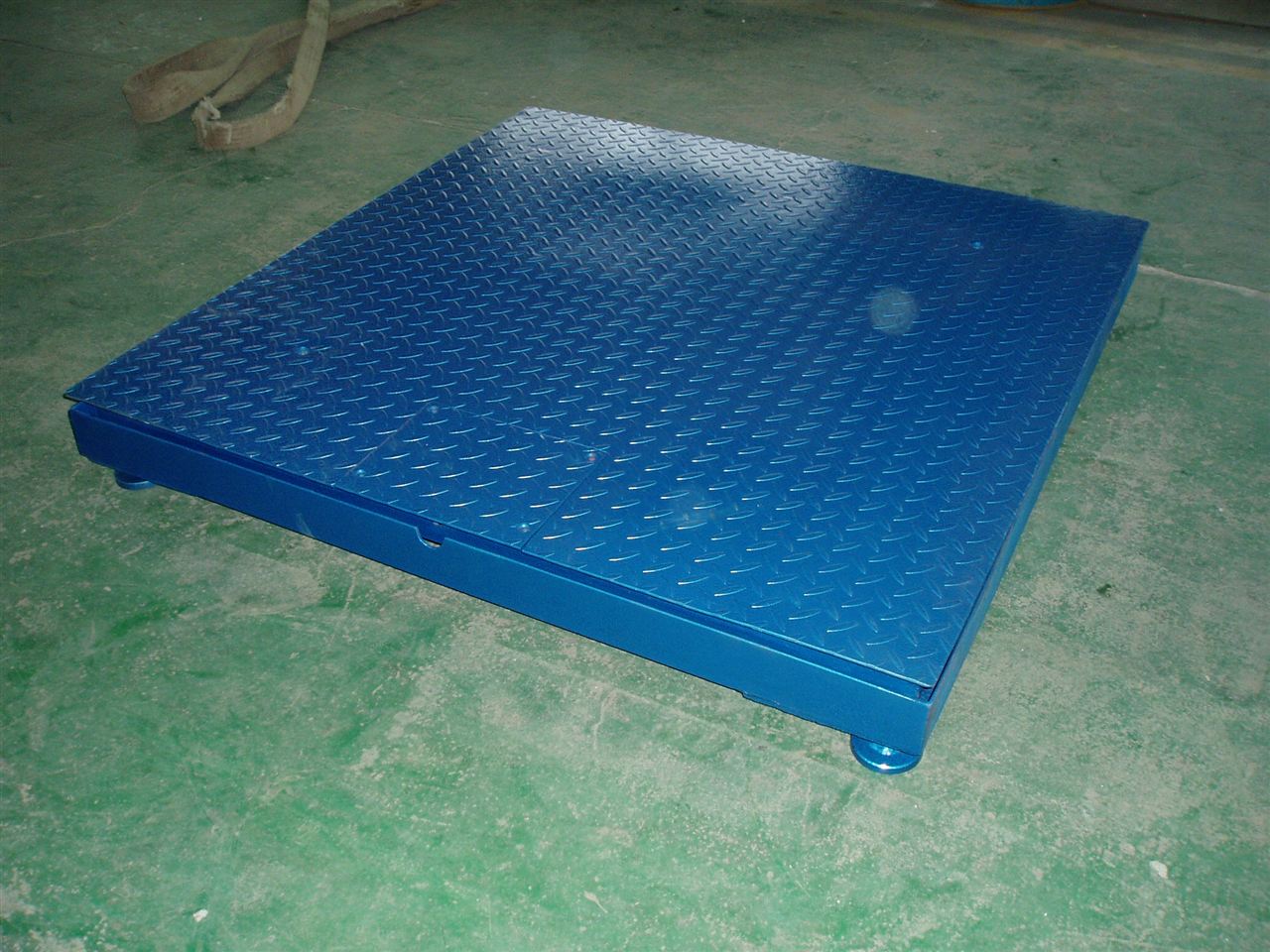

Double loadometer


Double loadometer



Product Type: SCS

Introduction:

Sophisticated appearance, strong structure, innovative technology patent high-rigidity high-strength design, innovative top appearance patented design, no frame, easy to move, suitable for small vehicle cargo weighing; can be equipped with slope, optional single layer double. Suitable for no pit or pit installation.

Double layer of small floor scales are widely used in warehouses, workshops, freight yard, bazaars and other occasions, suitable for hoisting cargo weighing, forklift shovel cargo weighing, placed on a flat and solid ground can be used. Way, after installation with the ground level, suitable for small carts or manual handling weighing.

Technical parameters:

Carbon steel bending reinforced structure, suitable for a variety of weighing requirements

Equipped with high-precision weighing sensor, optional explosion-proof, stainless steel type

Dual-level loadometer display weighing data, XK3190-A9 instrument using high-precision analog-to-digital conversion technology

AC and DC, for electronic platform scales, electronic floor scale, electronic truck scale, static track scale, etc.

Use a static weighing system with 1 to 8 sensors.

External battery, standard print interface, A9P built-in 16-bit panel micro-printer

Specifications:

Weighing range: 0.5t 1t 2t 3t 5t 8t 10t

Size: 0.8m × 0.8m 1m × 1m 1m × 1.2m 1.2m × 1.2m 1.2m × 1.5m 1.5 m × 1.5m 1.5m × 2m 1.5m × 2.5m 1.5m × 3m 2 m × 2m 2m × 3m 2m × 3m
